Description
Description:

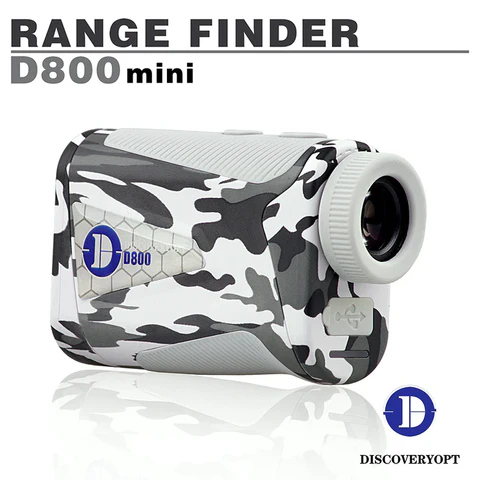

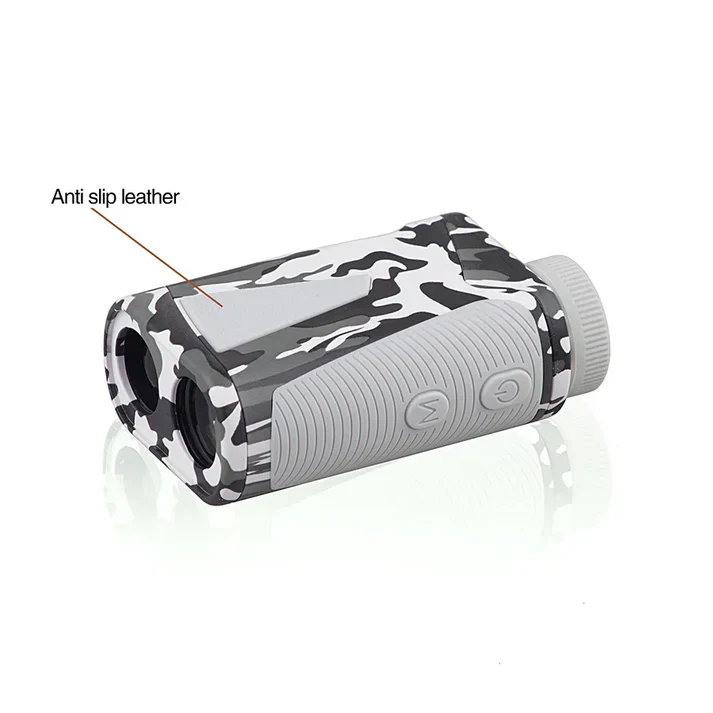

Discovery Mini Laser Rangerfinder D800 For Hunting, Laser Rangefinder, 800 Meter Range, It Can Measure M=Meters, Y = Yards, F = Feet, With Angle Indicator & Angle Compensation Power Button

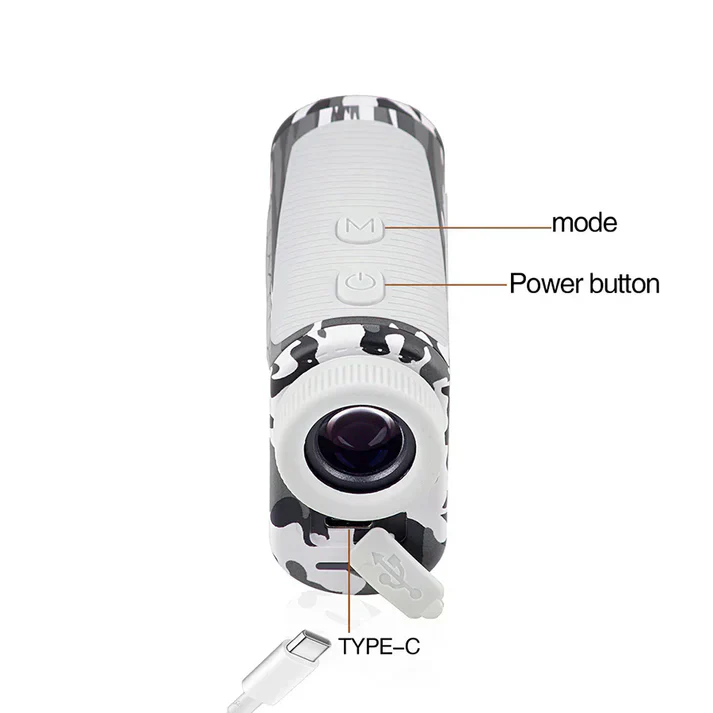

Press The Power Button To Power On
No Operation After 30 Second, It Will Powered Off Automatically

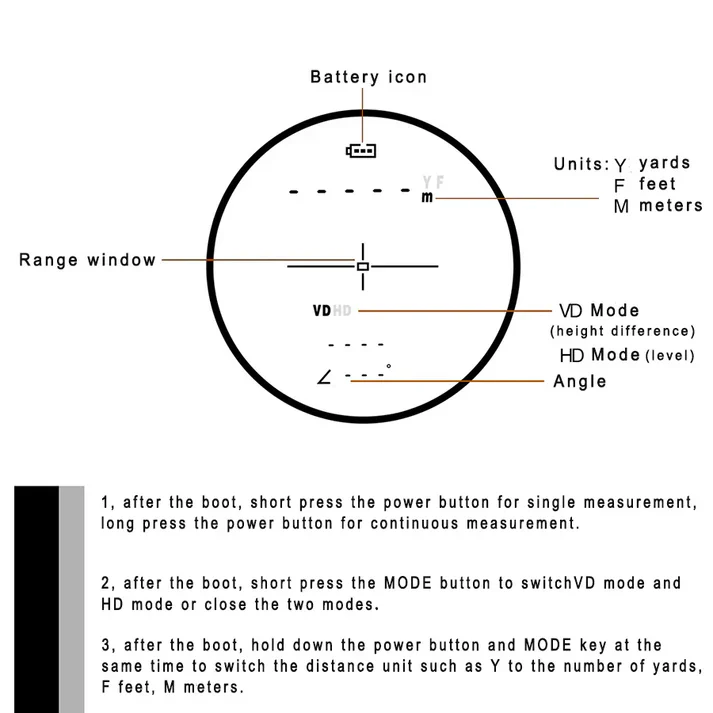

Mode Button
Press M To Switch The Mode
Mode 1, Straight Line Distance
1. Power On
2. Press Mode Button M To Straight Line Distance
3. Press Power Button To Measure

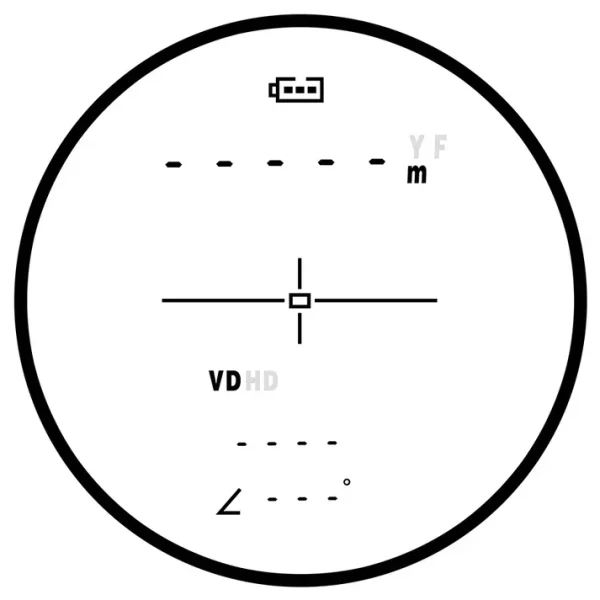

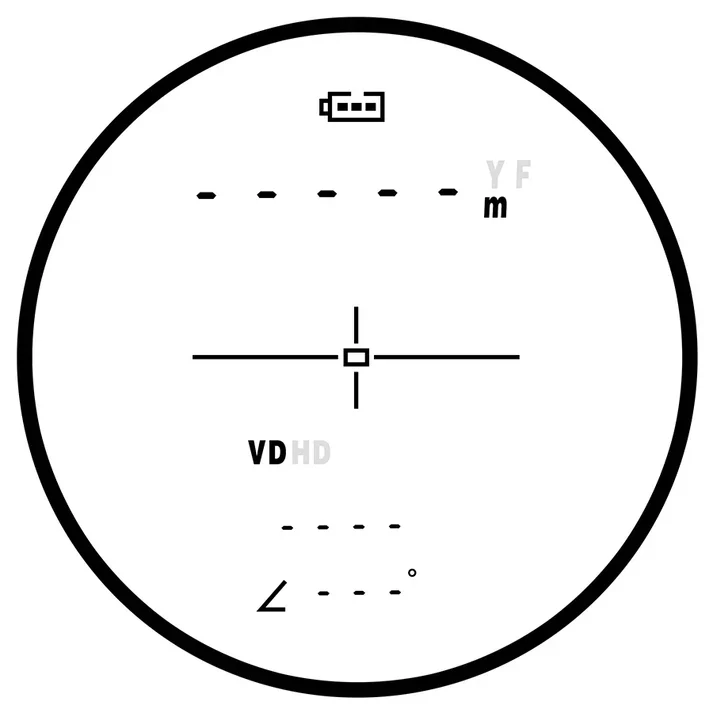

4. The Data Will Be Displayed On The Screen Mode 2, VD-Vertical Distance Mode
1. Power On
2. Press Mode Button M To VD Mode
3. Press Power Button To Measure
4. The Data Will Be displayed On The Screen
Mode 3, HD-Horizontal Distance Mode
Power On
2. Press Mode Button M To HD Mode
3. Press Power Button To Measure
4. The data will be displayed on the screen Memory Function
5.When the LRF is powered on, it will display the mode when the LRF powered off last time.
Specification:
|
Brand Name:
|
Discovery Optics
|
|
Product Name:
|
Laser Range Finder
|
|
Lens Coatings:
|
Fully Multi-Coated (FMC)
|
|
Model No.:
|
D800 Mini
|
|
Measurement Range:
|
5m-800m
|
|
Magnification XObj Lens:
|
8X25
|
|
Unit:
|
Meter/Yard/Feet
|
|
Field of View:
|
7.5 degrees
|
|
Diopter:
|
±3°
|
|
Angle Ranging Scope:
|
-90 to 90 degree |
|
Lens Quality:
|
Multi-Coated |
|
Laser Safety:
|
Glass1, Laser Wavelength 905nm
|
|
Focusing Mode:
|
Manual Focusing Eyepiece |
|
Shock-Proof/Fog-Proof/Rain-Proof:
|
Yes
|
|
Battery Life:
|
6 months or 50,000 measurements
|
|
Battery type:
|
Lithium Battery, Rechargable
|
|

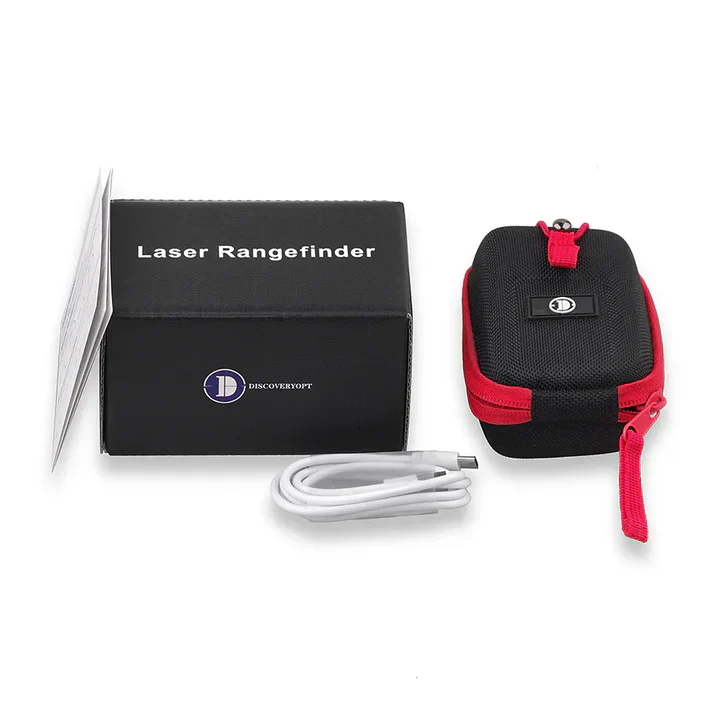

Accessories:
|
Carrying case, Clean cloth,C-Type Cable
|
|
Application:
|
Hunting, Climbing, Outdoor Rescue, Ship Guidance, Hoisting Work, Golf
|
